Details
Static showcase mod. MIX W 150 H 135 with the high straight glass without panels.

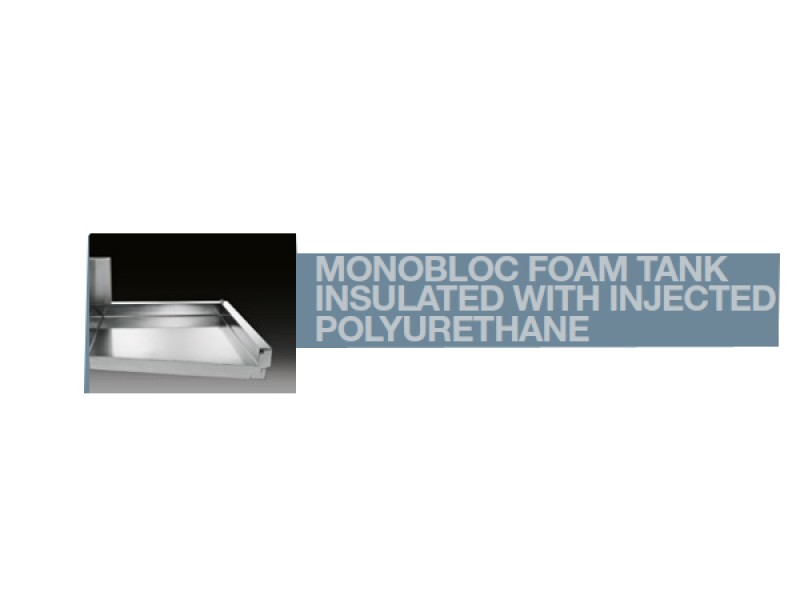

Lower bearing structure in tubular steel painted with epoxy powders in kiln at 180°C with stiffening elements and adjustable feet. The body block with a minimum thickness of 50 mm insulated with injected polyurethane foam at low density (40 Kg/m3). Monobloc tank in stainless steel AISI 304 Finishing Scotch-Brite: the tank is made in a single piece with internal corners radiused without solution of continuity between the shelf, drip and outer edges, in order to avoid of dirt. An aluminum tube drowned in the polyurethane foam and placed in contact with the peripheral edge of the tank houses a hot cable that acts as a thermal cut-off in order to prevent the formation of condensation on the windows that are in direct resting on the edge of the tub in stainless steel. Work Plan operator side deep 193 mm stainless steel AISI 304 Finishing Scotch-Brite. The rear wall on the operator side and the lateral sides of the tank in stainless steel AISI 304 Finishing Scotch-Brite. In the version static cold the display plane coincides with the bottom of the stainless steel tank and is then recessed 67 mm with respect to the peripheral edge of the tub.

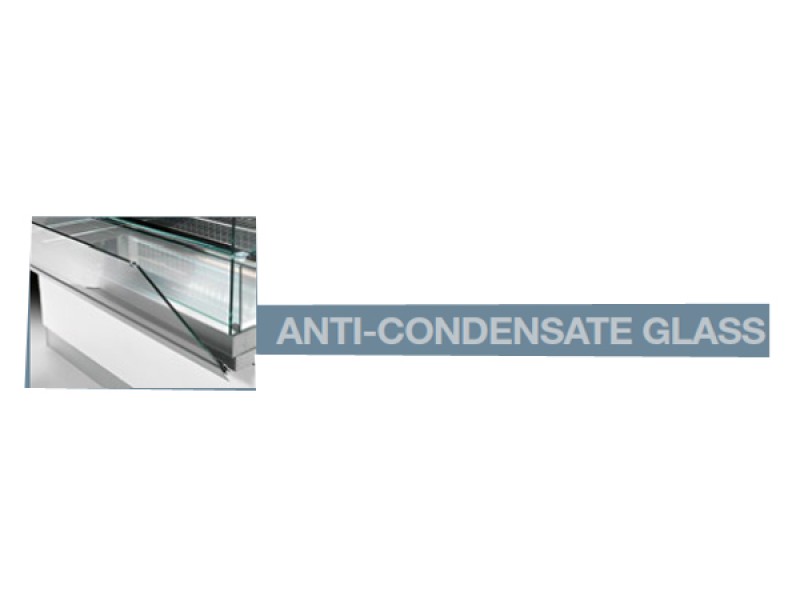

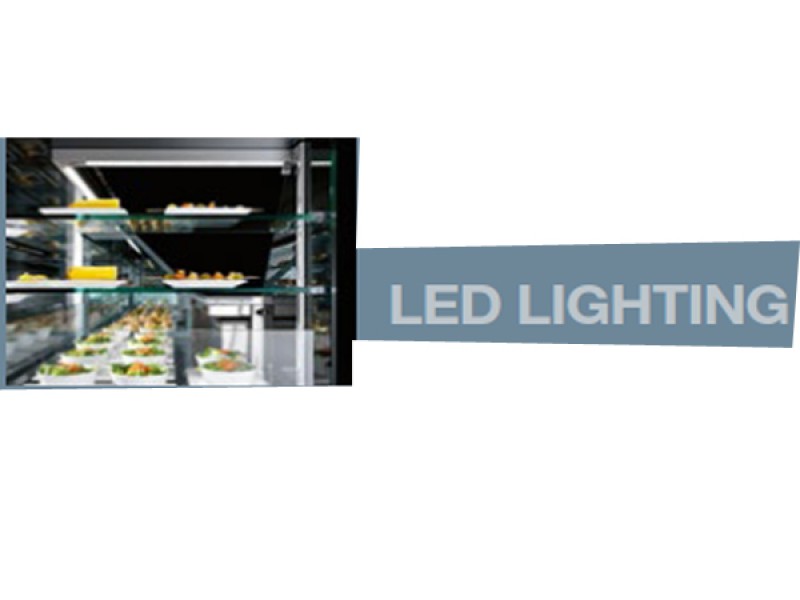

High straight glass, LED light
REFRIGERATION
Static refrigeration with capillary sealing unit for version with condenser unit on board. Automatic defrosting system with electric resistance on' evaporator; vessel evaporates condensate with the overflow level in version with condenser unit on board.
Technical Data
voltage 230 V
Frequency 50 Hz
Absorption 580 W
Temp. Operating + 4 ° C / + 8 ° C
Dimensions
W150xD127xH135 cm
Additional Information
| Tempi di consegna | About 3 weeks from order |
|---|---|
| Garanzia | 1 years |
