Details

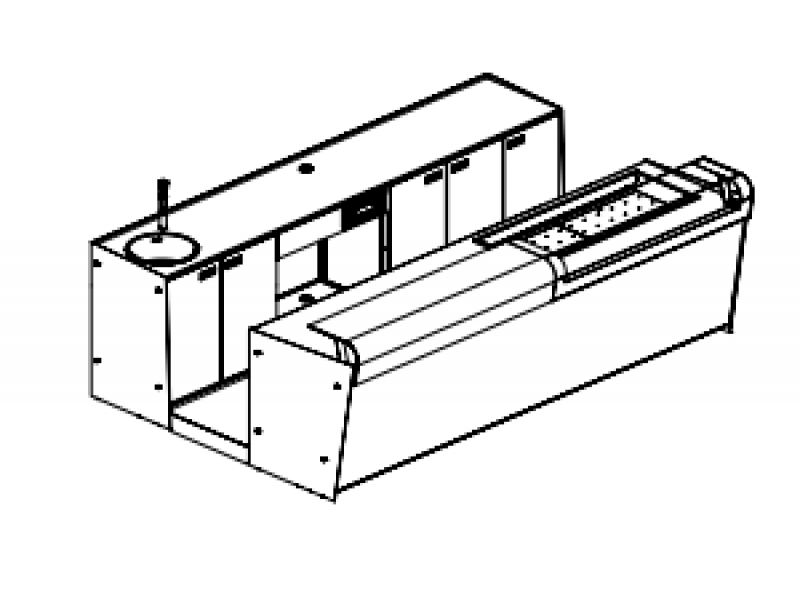

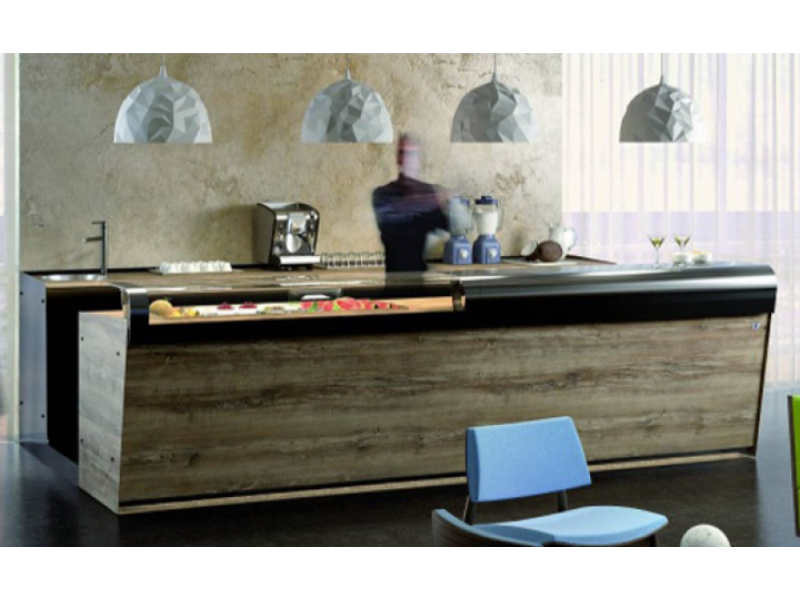

Bar counter mod. "Start Up" Wood L3500/SX H1150 Dimensions w350xD230xH95,1 cm, 4 doors refrigerated, 1 neutral zone with intermediate shelf from 100 cm, engine at central rim, showcase drop-in from 140 cm with total floor tray in bent glass and tempered. Back Counter composed of 1 sink diameter 42 cm, zone from 100 cm 2 neutral doors to sx, zone a day from 100 cm (for glasswashers or producer of ice), zone from 150 cm to 3 neutral doors on the right.
Start up General description:
BENCH BAR
1. Steel tubular supporting structure version wood in the oven at 180°C with epoxy powders, to guarantee the duration in time, with stiffening elements and adjustable feet for the perfect levelling of the furnishings.
2. Cell with ventilated refrigeration, to ensure greater performance and uniformity of the temperature inside the refrigerated compartment. The outer coating of the cell, including doors and drawers (optional), in prepainted sheet of white color. Operating temperature +4°C/+8°C. Test at 32°C with 60% R.H.
3. Onboard engine placed in the appropriate technical compartment protected from gray aeration prepainted sheet white. The refrigeration system is constituted by the hermetic compressor, condenser with copper tube and fins of aluminum air-cooled with fan, evaporator with copper tube and fins of aluminum supplied to capillary. Ventilated refrigeration with uniform distribution of air through a suitable conveyor located above the evaporator.
4. DROP-IN "A-PLUS" for exposure of food & beverage recessed into the cell whose exploits the refrigeration, made in stainless steel finishing Scotch-Brite, available from 1000 mm or 1400 mm. The tank is provided with a drain for cleaning and for the evacuation of liquids. Operating temperature +4°C/+8°C. Test at 25°C with 60% R.H.
5. Electronic control panel with General button for the management of the refrigerant system of the cell, and second button for the management of refrigeration of drop-in "A-Plus"
6.Work Plan in water repellent postforming white low formaldehyde emission.
7. Side in metal, thickness 3 mm, white painted in oven at 180°C with epoxy powders, fixed with 4 screws inserted inside stainless steel ferrules diameter 20 mm, thickness 7 mm.
8. Glass tempered transparent, thickness 6 mm, protection for the drop-in "A-Plus"
BENCH BAR
1. Steel tubular supporting structure version wood in the oven at 180°C with epoxy powders, to guarantee the duration in time, with stiffening elements and adjustable feet for the perfect levelling of the furnishings.
2. Cell with ventilated refrigeration, to ensure greater performance and uniformity of the temperature inside the refrigerated compartment. The outer coating of the cell, including doors and drawers (optional), in prepainted sheet of white color. Operating temperature +4°C/+8°C. Test at 32°C with 60% R.H.
3. Onboard engine placed in the appropriate technical compartment protected from gray aeration prepainted sheet white. The refrigeration system is constituted by the hermetic compressor, condenser with copper tube and fins of aluminum air-cooled with fan, evaporator with copper tube and fins of aluminum supplied to capillary. Ventilated refrigeration with uniform distribution of air through a suitable conveyor located above the evaporator.
4. DROP-IN "A-PLUS" for exposure of food & beverage recessed into the cell whose exploits the refrigeration, made in stainless steel finishing Scotch-Brite, available from 1000 mm or 1400 mm. The tank is provided with a drain for cleaning and for the evacuation of liquids. Operating temperature +4°C/+8°C. Test at 25°C with 60% R.H.
5. Electronic control panel with General button for the management of the refrigerant system of the cell, and second button for the management of refrigeration of drop-in "A-Plus"
6.Work Plan in water repellent postforming white low formaldehyde emission.
7. Side in metal, thickness 3 mm, white painted in oven at 180°C with epoxy powders, fixed with 4 screws inserted inside stainless steel ferrules diameter 20 mm, thickness 7 mm.
8. Glass tempered transparent, thickness 6 mm, protection for the drop-in "A-Plus"
Technical Data
4 refrigerated counters
1 zone neutral with intermediate shelf 100 cm
engine on board
showcase drop-in 140 cm
countertop total curved and tempered glass
1 sink diameter 42 cm
area from 100 cm 2 neutral branches to left
the living area by 100 cm by 150 cm
area 3 neutral branches to right
Dimensions
W350xD230xH115 cm
Additional Information
| Tempi di consegna | About 3 weeks from order |
|---|---|
| Garanzia | 3 years |
