Details
Pastry counter drop in closed delice, cold ventilated / warm dry model L1720 without panelling, inferior carrying structure in tubular of steel painted with dusts oven epossidiche 180°C with elements of stiffening, adjustable footsies. It strikes monoblocco skimmed with low density poliuretano with least thickness of 50 mm. You depart to sight in steel inox AISI 304 finish Scotch Brite. It systematizes anti it condenses with warm cable inserted inside a pipe in copper set to contact of the frame perimetrale of the tub. The plain espositivo of the benches DROP-in DELICE with cold / warm service is constituted from an only plan in moderate white glass with serigrafia resistiva boxed of 30 mm in comparison to the edge perimetrale and subsequently ribassabili of other 2 postings of 20mm every, to allow to expose and to adequately preserve commodity of different height. The regulation of the plain espositivo in glass is facilitated by the side handles
The castle glasses, ideal also as plan of support is available in the configuration closed with glass Float termosaldato, illumination to LED and total closing with flowing in plexiglas
Refrigeration ventilated with hermetic group mono-phase to capillary, in case of unity condensatrice on board, (UC) to valve in case of unity external (NUC) condensatrice. Sbrinamento to time. The panel commands electronic you/he/she is furnished climbed on in the part operative side with digital repeater of temperature climbed on on the frame perimetrale in steel inox to sight of the client. The benches DROP-in DELICE make a will to 25 °Cs and 60% Us.R. (tests effected with frontal glasses termosaldati H250P400 without back closing). Temperature of exercise +3°C, +8°C.
The plain espositivo in moderate white glass with serigrafia resistiva develops the function warm dry in alternative to the ventilated cold. Acting on the relative button of the panel commands him it plans the temperature passing from the cold ventilated to the warm one and vice versa. The temperature of exercise on the plain espositivo for the function warm dry it is of 80°C
Technical data
Voltage : 230V / 50 Hz
Absorption : 1068 W
Cold function operating temperature : + 3 ° C, + 8 ° C.
Operating temperature hot function : 80 ° C
Released : 1161 / -10 W / ° ; C

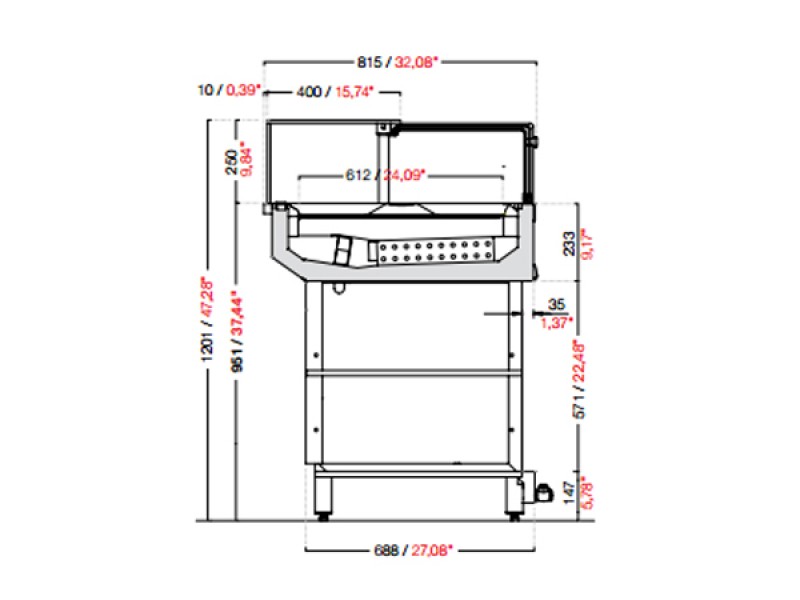

Dimensions
W172XD81,5XH120
Additional Information
| Tempi di consegna | About 3 weeks from order |
|---|---|
| Garanzia | 1 years |
