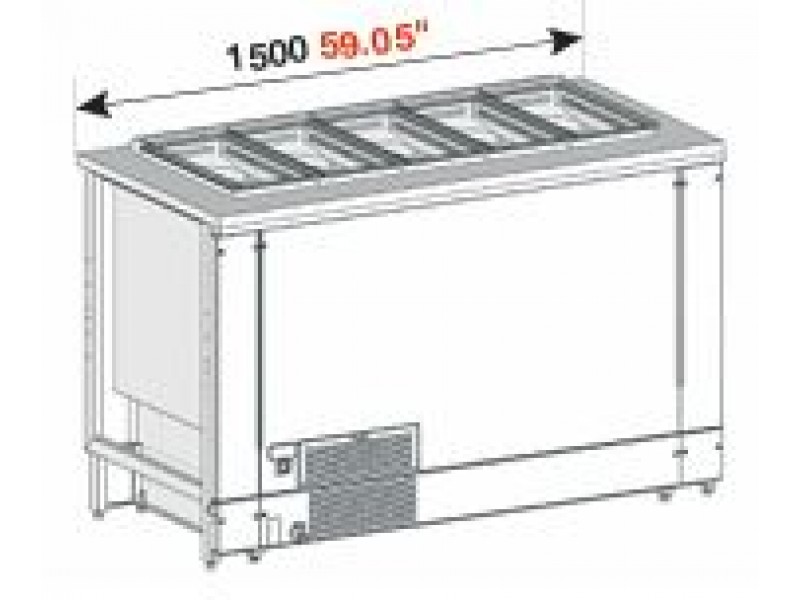

Tour to wells gelato ventilated mod. Panorama from 10 holes with reserve,with onboard engine carapine, not included in the price. The counters for gelato and granita mod.Panorama have the supporting structure in tubular d'steel painted with epoxy powders in kiln at 180°C, with stiffening elements and adjustable feet, to their inside the tub Panorama made with foamed structure with polyurethane density 40 kg/mc (thickness 60mm) complete with copper serpentine drowning and expansion valves.
Perimetric frame equipped with led lighting, including PVC seal food, and the hermetic closure of the upper glass,the seal is replaceable. Ice cream/granite at sight thanks to the hermetic sealing in the pyrolitic glass tempered and heated, glass with hermetic closure are available for 2 or 4 holes with servo closing, Flavor labels holder that integrated in the Profile window opening on the customer side, once opened the window acts as a barrier between the product and the customer.
Tub wells with stirrer inside of air to ensure a uniform temperature and allow the perfect preservation of the gelato, available in versions with on board condensing unit (UC) or with condenser unit external (NUC). Manual defrosting with stoppage of the plant.
Electronic control panel with digital display that lets you view the internal temperature. Operating Temperature-2°C -18°C, Panorama is tested at 30°C and 55% R.H.
Technical data
Voltage : 230 V 50 Hz
Absorption : 500 W
Ventilated refrigeration
Temp.di exercise : -2 ° C -18 ° C
Engine on board
10 Holes with reserve
Carapine not included in the price.
Dimensions
W200XD71XH95,1 cm
Additional Information
| Tempi di consegna | Approximately 3 weeks from order |
|---|---|
| Garanzia | 1 years |
