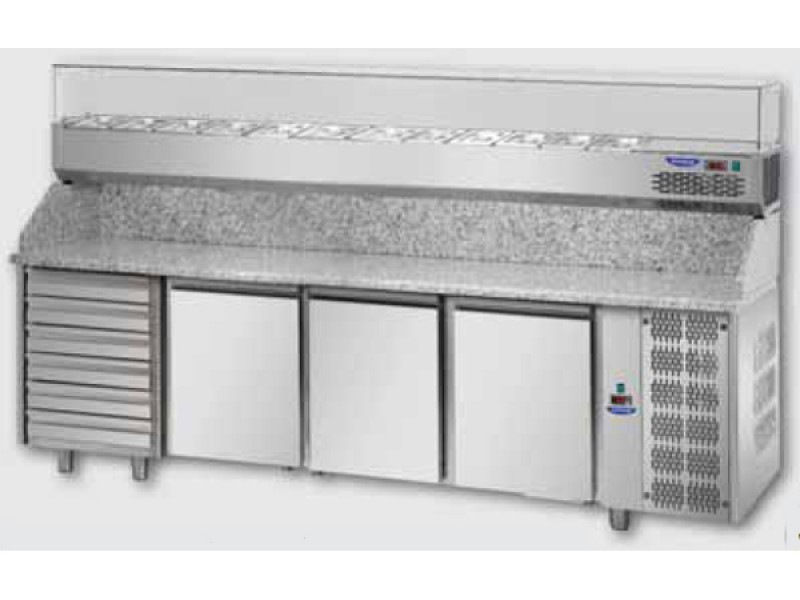

Refrigerated pizza counter 60X40 with 3 doors + non-refrigerated chest of drawers with 6 drawers 60x40 cm and motor on board,
with refrigerated display case (pans and lids not included)
DETAILS
- Inside and outside in stainless steel, with the exception of the external bottom in galvanized steel; - Rounded internal corners;
- Polyurethane injected at high pressure without CFC gases dangerous for the environment (density 40 Kg / m³); - Insulation thickness: 40 mm;
- Doors with automatic closing and magnetic gasket; - Electronic control panel front with NTC probe;
- Monobloc refrigerating unit (room temperature + 30 ° C and relative humidity of 60%); - Evaporator with anti-corrosion cataphoresis treatment;
- Fully automatic defrosting and evaporation of condensation water; - Kit of no. 4 height-adjustable stainless steel feet (110/180 H mm);
- Worktop and upstands in granite and insulating undertop; - Stainless steel trays with dimensions W 600 x D 400 x H 12 mm can be inserted;
- The MID table pizza can be combined with refrigerated display cases for pizza ingredients with independent group; - Easy and immediate installation.
STANDARD EQUIPMENT
- Nr. 5 pairs of L-shaped stainless steel guides for each door; - Insulating undertop; - Standard packing: pallet + cardboard.
AVAILABLE VERSIONS
- Stainless steel; - With built-in unit; - With neutral chest of drawers with 6 drawers, complete with polypropylene trays 600 x 400 x H 70 mm;
- With motor on the right or left; - R290 (On request)
Complete with L270 refrigerated display case made entirely of stainless steel, suitable for housing GN 1/2 - 1/3 - 1/4 - 1/6 -1/9 trays
with a maximum height of 150 mm.
Static refrigeration with built-in condensing unit. (operating temperature + 3 ° C / + 5 ° C) - Front electronic control panel with NTC probe;
- Defrost at stop; - Kit of nr. 4 feet adjustable in height up to H. 20 mm; - Easy and immediate installation
- Front electronic control panel with NTC probe; - Defrost at stop; - Kit of nr. 4 feet adjustable in height up to H. 20 mm; - Easy and immediate installation
Technical data
3 doors + 1 non refrigerated chest of drawers
Ventilated refrigeration
Temperature of use refrigerated compartments + 2 ° C + 8 ° C
Refrigerated display case use temperature + 3 ° C + 5 ° C
Internal volume: 660l
Useful volume: 408l
Power consumption: 400W + 220w (showcase)
Power supply: 220 / 240V / 50Hz / 1P
Measures
Pizza counter: L270xP80xH106cm
Showcase: L270x39x46cm
