Details

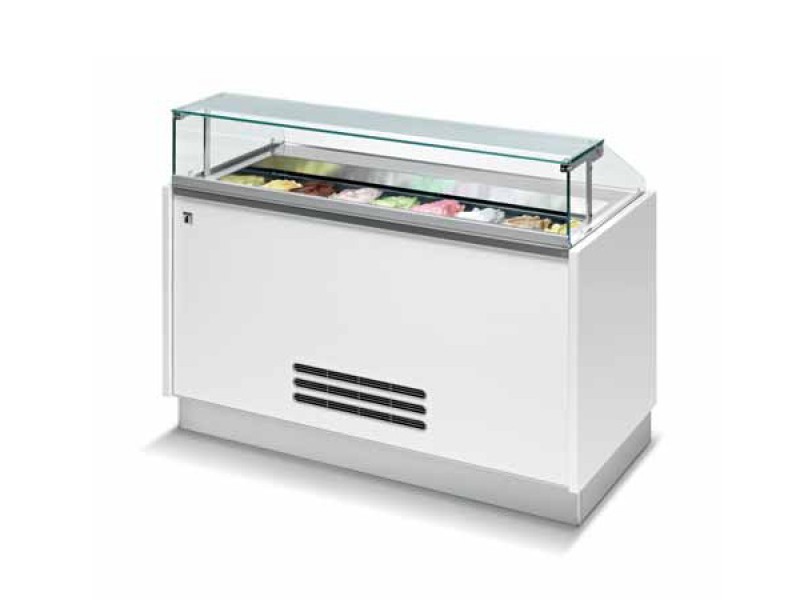

Ice-cream showcase ventilated mod. Snack&food 100 from 5 pans 36x16.5 in single row (with the reserve tank). Lower bearing structure in tubular steel painted with epoxy powders in oven at 180°C with stiffening elements and adjustable feet. The body block with a minimum thickness of 50 mm insulated with injected polyurethane foam at low density (40 kg/mc).

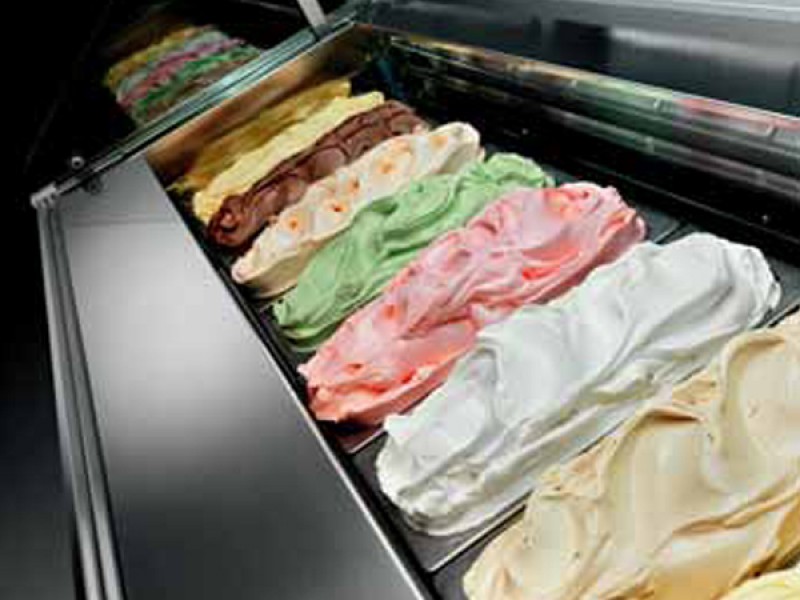

In the tank can be inserted gelato pans from 360x165 mm on single row with the possibility to accommodate a second row of reserve under those expository (only with trays high 120 mm). The Gelato pans are not included in the price. On request (optional) various accessories to accommodate ice-cream cakes, ice-cream cups monoporzioni, ice cream and ice cream on a stick.

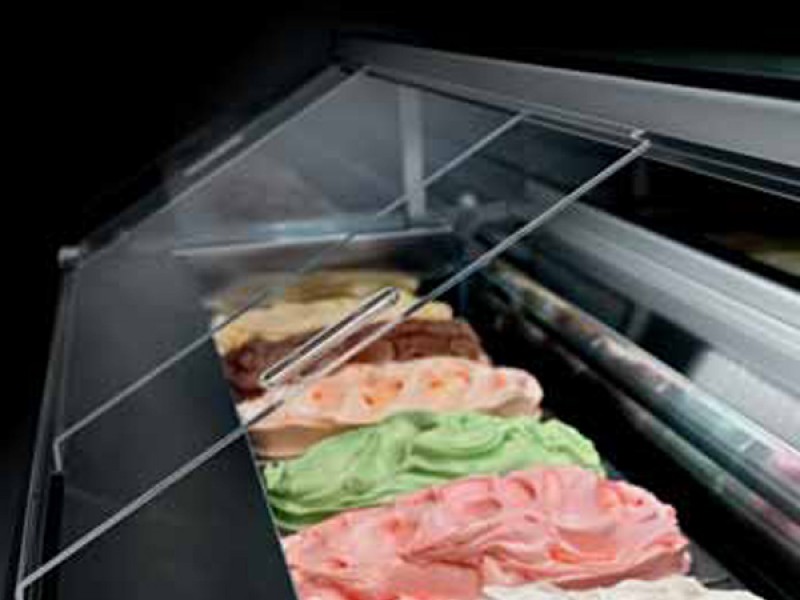

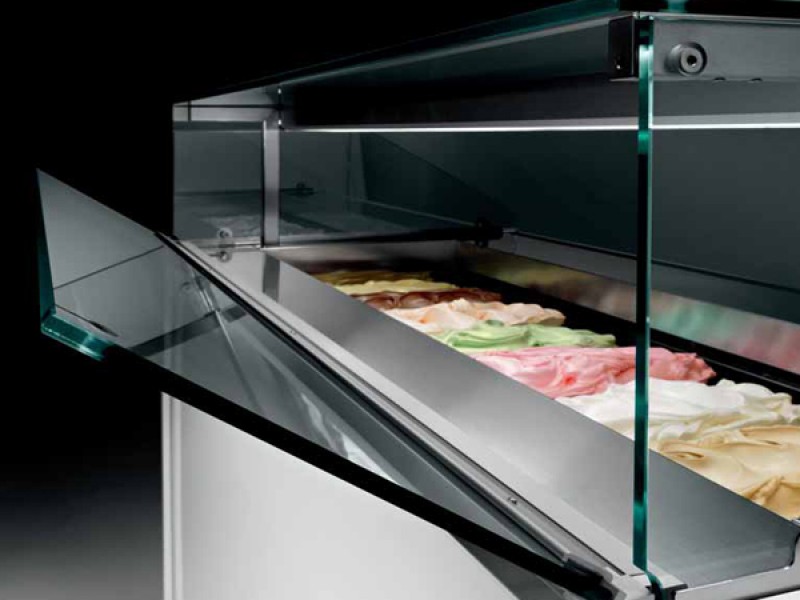

Condensate drain system with hot cable inserted inside an aluminum tube drowned in the polyurethane foam and placed in contact with the peripheral edge of the tub. The castle glass is available in two configurations:tall glasses rights (VAD) and glass low rights (VBD) The front glass is tempered and retractable folding system on client side. A bracket supplied in glass version senior rights (VAD). The lateral sides of transparent glass.
Ventilated refrigeration with automatic defrost hot gas in the case of on board condensing unit and cycle reversal in the case of the condenser unit external (a cycle every 8 hours).
Technical data
5 pans 36x16,5 (reserve tank)
Voltage : 230V/50 Hz
Absorption : 588 watts
Temp. Operating : -12 ° C-18 ° C
Low straight glass : H125 cm

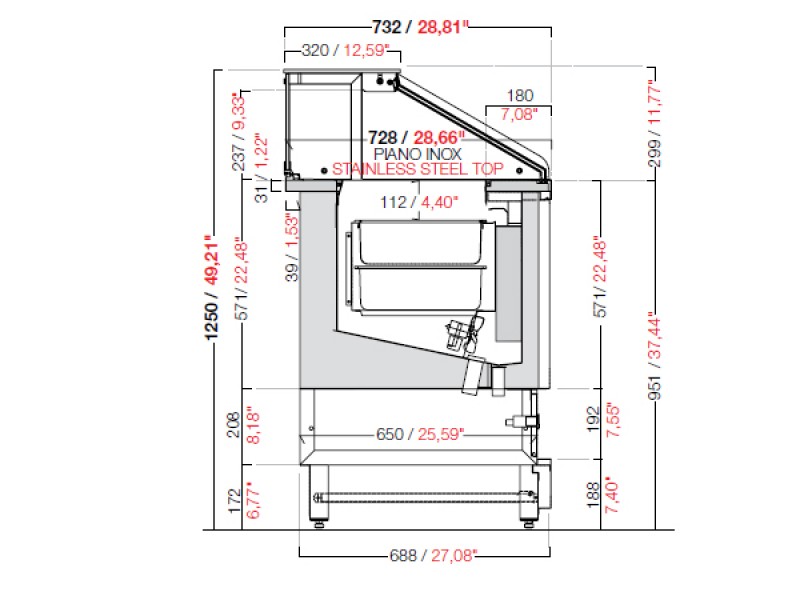

Dimensions
W100xD73,2xH125 cm
Additional Information
| Tempi di consegna | About 3 weeks from order |
|---|---|
| Garanzia | 1 years |
