Details

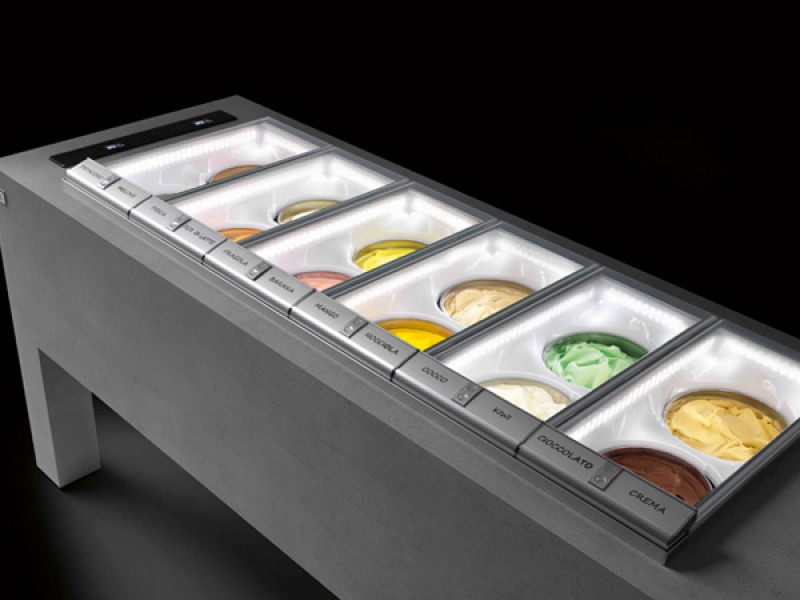

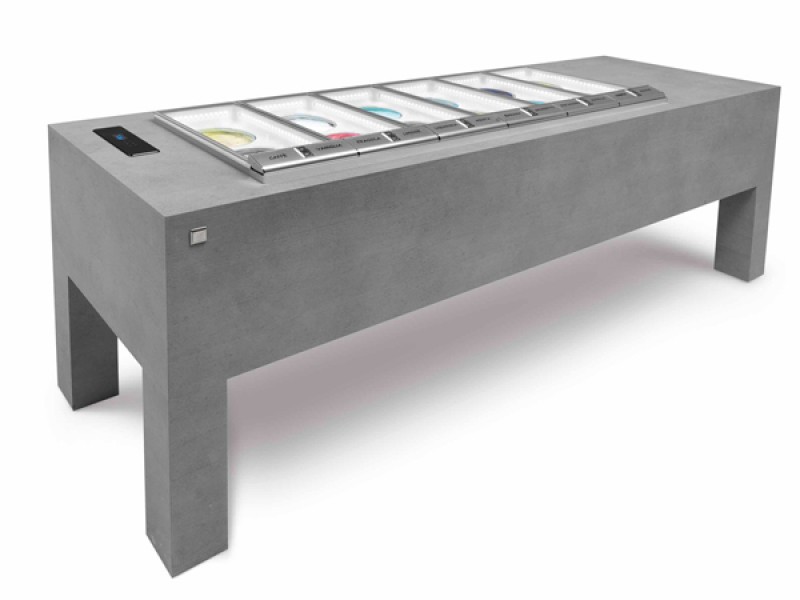

Tour to the cockpit ice cream mod. Bellevue 10 monotemperature holes from 214 cm aesthetic(1), the table Bellevue is an exhibitor and conservative of ice cream/granite "pin" available in length 2150 mm with tub wells panorama from 10 holes without reserve, onboard engine single-phase.
Bearing structure made with tubular and boxed in galvanized sheet metal, Exterior coating in color laminated cement. Inside the table BELLEVUE is housed the tub wells panorama from 12 holes without reserve, realized with foamed structure with polyurethane to Density 40 Kg/mc (thickness 60 mm) full of serpentine in copper tube submerged and expansion valve. Inside the tank in stainless steel AISI 304 finishing 2B with the drain with the closure cap.

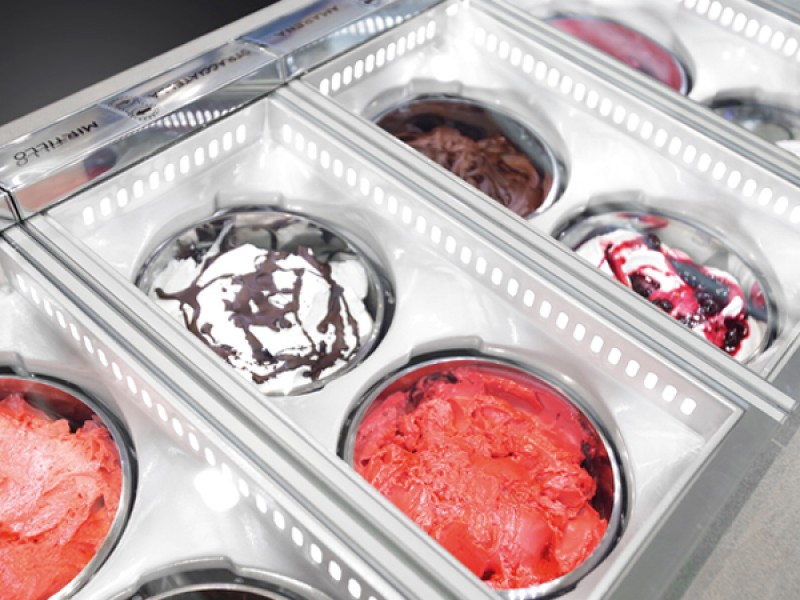

Wire Baskets plasticized to contain the carapine, integrated with the system anti-rotation, and upper tray in injection-molded polycarbonate: tray and baskets are removable to allow cleaning of the tank.

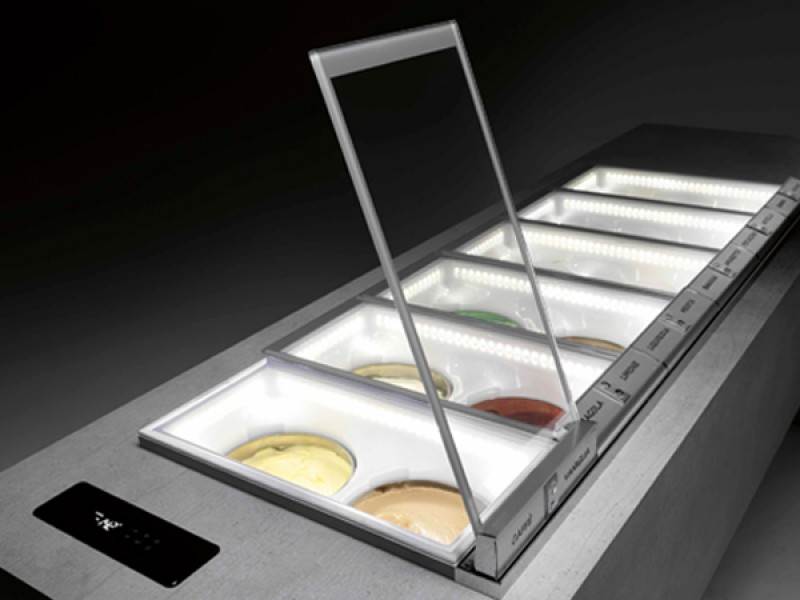

Perimetric frame equipped with LED lighting including PVC gasket supplied for the hermetic closure of the upper glass, the gasket is replaceable.
Tub wells without reserve with stirrer inside of air to ensure a uniform temperature and allow the perfect preservation of the gelato. Condenser Unit single phase on board (UC). Manual defrosting with stoppage of the plant. Electronic control panel single or double, in the case of the version with 2 different temperatures, with digital display touch screen. Operating temperature -2°C/-18°C. BELLEVUE is tested at 30°C and 55% R.H.
Specifications
Voltage : 230-50 Hz
Absorption : 774 watts
Temp -12-18 °C Mono temperature
Displacement : 18.30 cm3
Yield 615W / -30 ° ; C
Ventilated refrigeration
No reserves
Unit Built-in remote

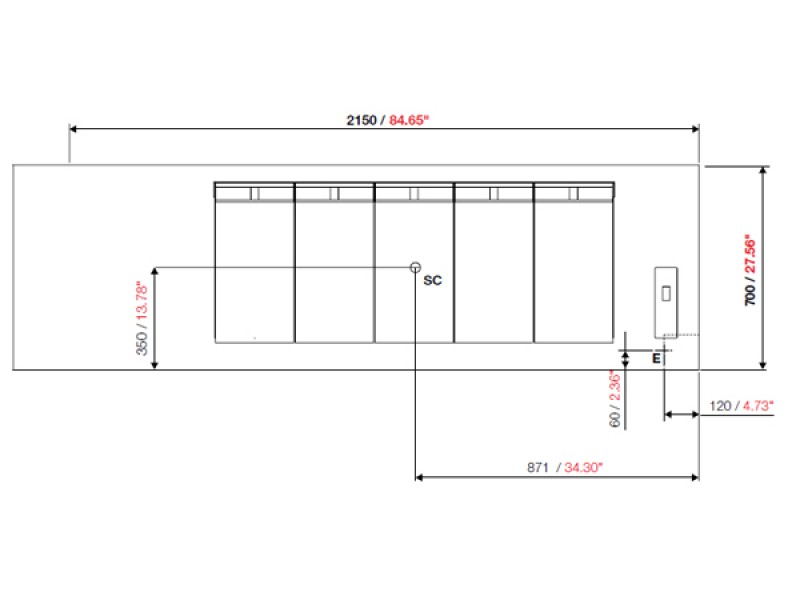

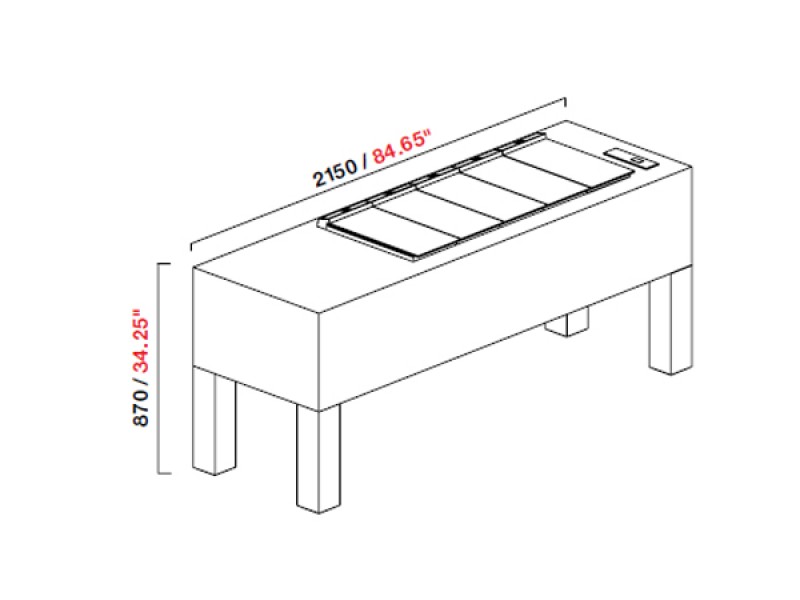

Dimensions
W215xD70xH87 cm
Additional Information
| Tempi di consegna | About 3 weeks from order |
|---|---|
| Garanzia | 1 years |
