Details

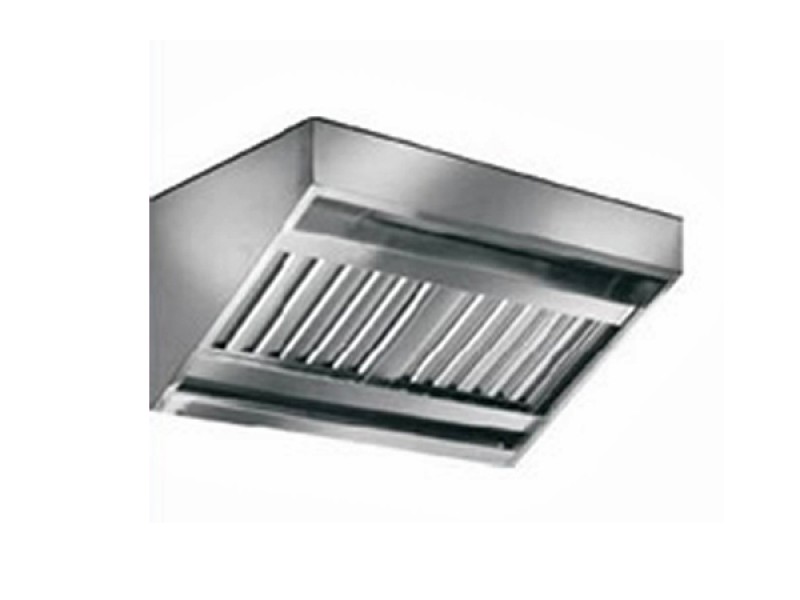

Wall extractor hood mod. Snack stainless steel without aspirator model ES 7/24. Construction inox AISI 304; Satin Scotch-Brite. Welding and beading also internally.Assemblatura by welding and electric tacking. Perimeter raceway condense and exhaust. Grease filters in AISI 304 to 4 layers of crossed network. At the request labyrinth filters without any surcharge. Condenser and terminal board in the IP box 55 (in versions self-priming).
Are not including the pipes and fittings for connection to the flue. The hoods without engine forometria have variable ( to be communicated at the moment of'order). &' included in the price the'packaging of plastic or nylon (not recommended for shipping). The special packaging with wood will be charged. You do not intend to including the wall mounting of the hood.
Technical data
Construction Stainless steel AISI 304 satin scotch-brite
Welded and also internally rimmed
Assembled by welding and electric tacking,perimeter Raceway condense welded and finished (on all models).
Grease filters in AISI 304 to 4 layers of crossed network.
On request labyrinth filters without any surcharge.
No aspirator
Hole to communicate (specify at the time of order).
N ° 3 filters 50x40 cm
Capacity m3 / h : 1800
Volume : 0,70 m3
Dimensions
W240XD70XH50
Additional Information
| Tempi di consegna | About 2 weeks from order |
|---|---|
| Garanzia | 1 years |
